Sieve Bend Screen

Wedge Wire Sieve Bend Screen is also known as side hill screen,stainless steel wedge wire arc curved screen,parabolic screen,static run down screen,and DSM Screen.

Feature:Wedge wire sieve bend screens are cross-flow sieves.The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.

Application:liquid-solid and solid-solid separation in Sugar,Coal Mining & Quarrying,Mineral Processing,Cement,and Industrial & Urban Effluent Treatment etc.

Payment:T/T,Paypal,Western Union

Category：Wedge Wire Screen

Description

Wedge Wire Sieve Bend Screen is also known as side hill screen,stainless steel wedge wire arc curved screen,parabolic screen,static run down screen,and DSM Screen after the Dutch State Mines introduced it.DSM screen offers reliable performance and economical solution in liquid-solid and solid-solid separation of fibrous and non-greasy solids for municipal and industrial applications.

Specification
Material: Stainless steel 304,304L,316,316L,321,430,etc
Slots of this DSM screens range from 0.10 to 7,0 mm
Capacities range from 10 to 1000m3 /h with multiple units
Sieve bend screens can be customized according to your requirement.

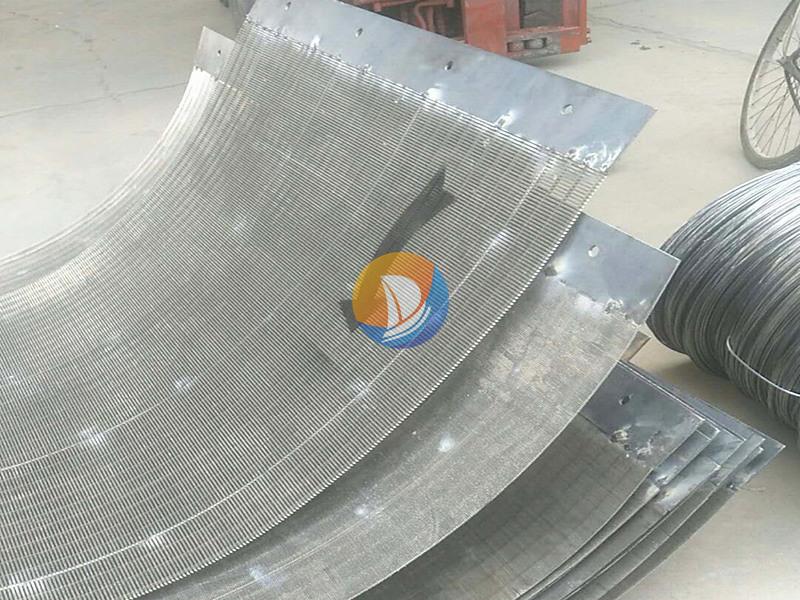

Arc curved screen
Feature
Wedge wire sieve bend screens are cross-flow sieves.The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.

Application
Sugar Processing
Pulp & Paper
Coal Mining & Quarrying
Mineral Processing
Cement
Industrial & Urban Effluent Treatment.

Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.

Tags: Sieve Bend Screen,DSM Screen,Arc Curved Screen,Static Run Down Screen
