Description

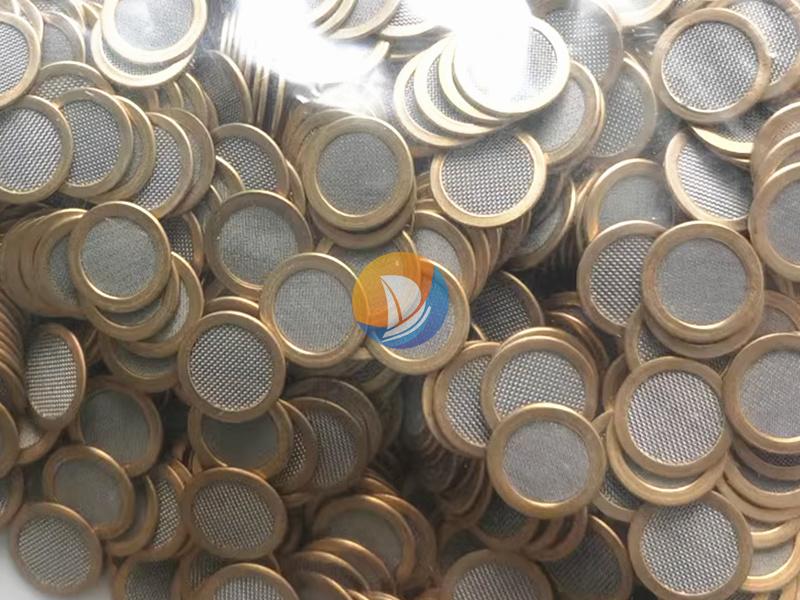

Weeke Console Microtamiz Filter Disc 4016090033 is made of two layers of Stainless Steel Wire Cloth,punched into round shape and clamped in a brass ring.
Weeke Console Micro Filter Specification:
Material: Brass ring rimmed stainless steel wire mesh
External diameter D: 15 mm
Thickness: 0.8 mm
Aperture size: 0.103 mm
Wire diameter: 0.07 mm
HOMAG/Weeke 4-016-09-0033
Schmalz 10.07.01.00211
Schmalz CNC beam filter
Filter screen for Homag
Mesh on Weeke console
Weeke Console Filter Discs Application:
Weeke Console Microtamiz Filter is the CNC beam filtration strainer to protect against dust entering the vacuum circuits of beam console tables K1 and K2.
Weeke Console Micro Filter Specification:
Material: Brass ring rimmed stainless steel wire mesh
External diameter D: 15 mm
Thickness: 0.8 mm
Aperture size: 0.103 mm
Wire diameter: 0.07 mm
HOMAG/Weeke 4-016-09-0033
Schmalz 10.07.01.00211
Schmalz CNC beam filter
Filter screen for Homag
Mesh on Weeke console
Weeke Console Filter Discs Application:
Weeke Console Microtamiz Filter is the CNC beam filtration strainer to protect against dust entering the vacuum circuits of beam console tables K1 and K2.
Widely use with Homag Weeke PTP CNC centers,also can be worked with FELDER,IMA BIMA,MASTERWOOD and others with Schmalz consoles.
Tags: Micro Filter Discs,Brass Micro Strainers
